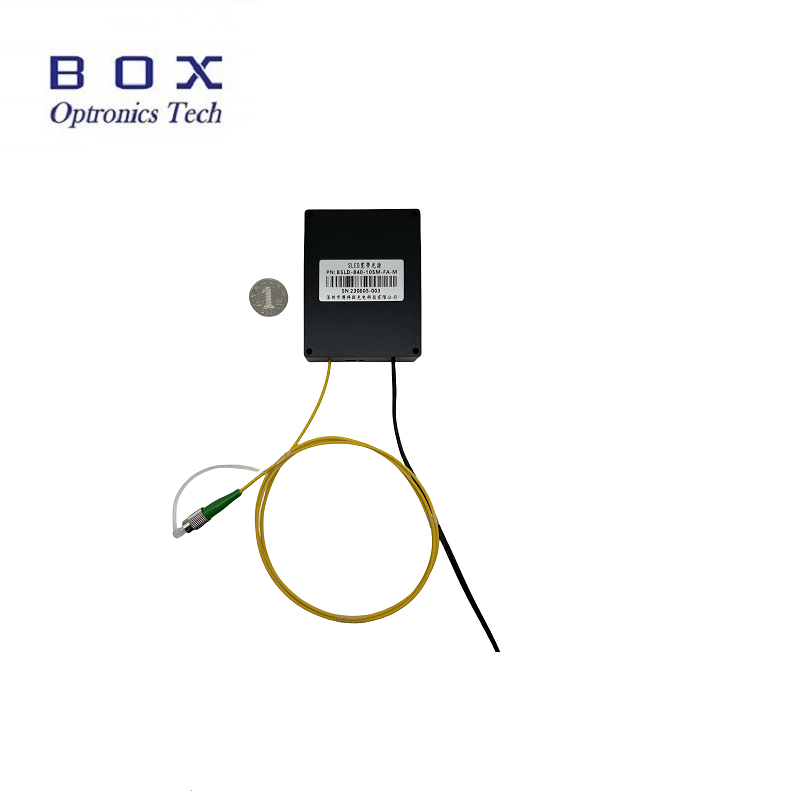

840nm 20mW Broadband SLED module for OCT
Box Optronics owns the factory and supports the 840nm 20mW Broadband SLED module for OCT.
Wavelength: 840nm+/-20nm
Output power customized: 20mW or other > 5mW 10mW 15mW...
It has built-in current drive, plug and play, and can also be powered by a 5V customer power supply, making it an ideal choice for OEM integration. It has a compact structure, mini size, and does not take up space, making it easy to install.
The output power is around 23mW, the operating current is around 220mA, and the 3dB bandwidth is greater than 45nm.
It works stably, has a 12-month warranty, and accepts small and large batch orders. It can be used in R&D, medical and industrial fields.
Box Optronics can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control.
Welcome to consult and test samples!
Send Inquiry
Product Description
1. Ordering information
Wavelength: 840nm
Output power: 20mW/ other
Own factory, support customized.
Hot:
2. Features of 840nm 20mW Broadband SLED module for OCT
Ultra wide spectrum;
Low spectral ripple;
20mW High output power;
Customizable size.
3. Applications of 840nm 20mW Broadband SLED module for OCT
Industrial OCT technology:
Optical fiber sensing:
Medical imaging:
Optical coherence tomography.

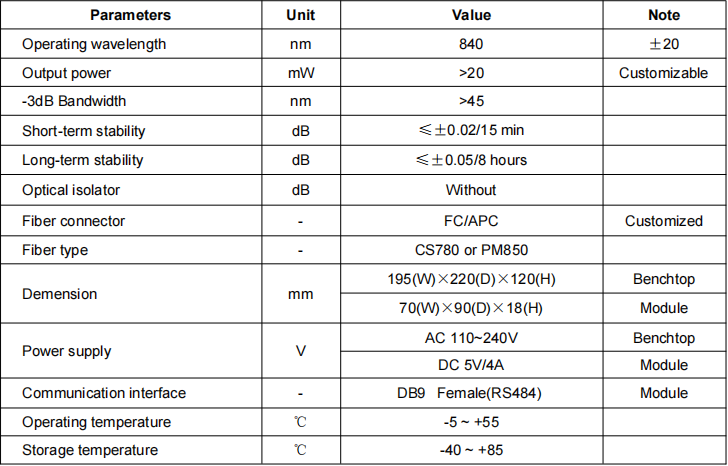

4. Electro-Optical Characteristics of 840nm 20mW Broadband SLED module for OCT

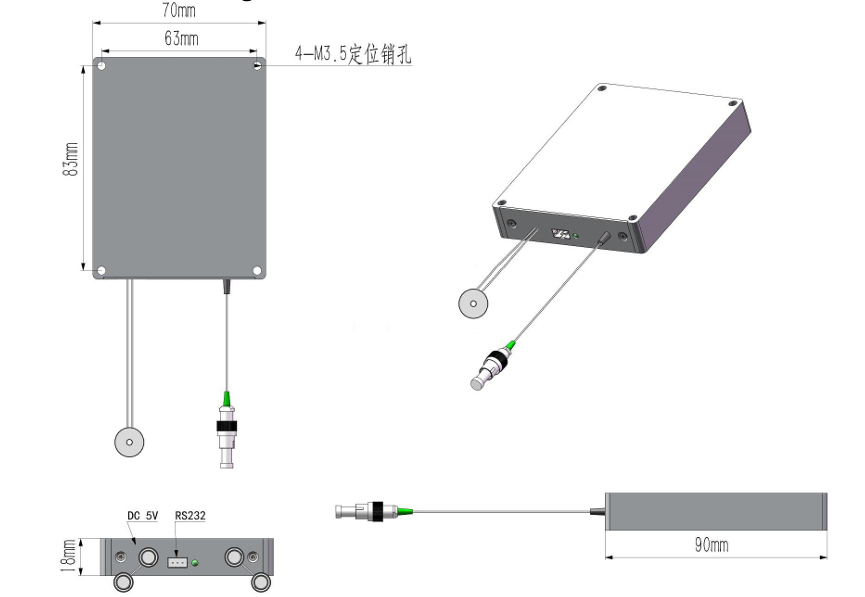

5. Dimensions of 840nm 20mW Broadband SLED module for OCT
6. Shipping
Via DHL/ UPS/ FedEx...
Lead time: around 3 weeks
