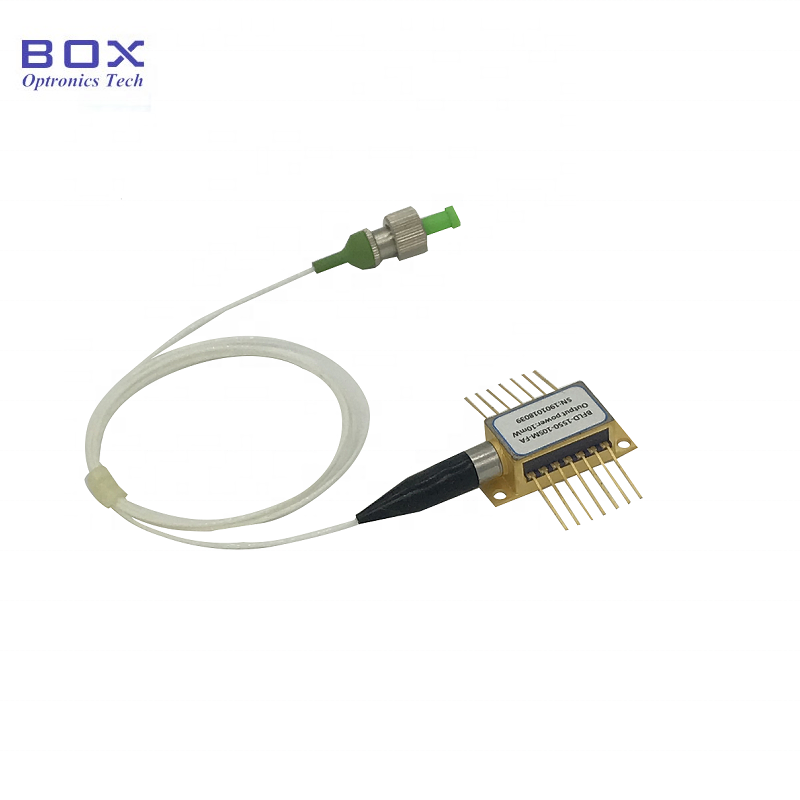

DWDM 1553.33nm CW DFB laser diode
Box Optronics owns the factory and supports DWDM 1553.33nm CW DFB laser diode.
Wavelength optional: 1553.33nm
(1526.44nm~1563.05nm optional)
Output power customized: 20mW or other 10mW 40mW
DWDM butterfly laser is a semiconductor laser that can be used in dense wavelength division multiplexing system, using 14-pin butterfly package.
Box Optronics provides DWDM butterfly lasers with wavelengths from 18 to 64 channels, including 1553.33nm, wavelength accuracy +/-0.5nm, output power of 20mW, and some wavelengths can provide 40mW.
It can be applied to local area networks, wide area networks and metro networks; laser sources; cable TV systems, etc.
If you are looking for a high-performance and reliable DWDM butterfly laser, Box Optronics products are undoubtedly your ideal choice.
Send Inquiry
Product Description
1. Ordering information
Wavelength: 1553.33nm
Output power: 20mW/ other
Own factory, support customized.
Hot: DWDM 1553.33nm CW DFB laser diode
2. Features of DWDM 1553.33nm CW DFB laser diode
High output power;
1528.77~1610.06nm DWDM Center Wavelengths (100GHz spacing)
High-reliability in 14-pin butterfly package
Built-in optical isolator.
3. Applications of DWDM 1553.33nm CW DFB laser diode
LAN, WAN and metro networks;
CWDM/ DWDM systems;
Laser sources;
CATV systems.

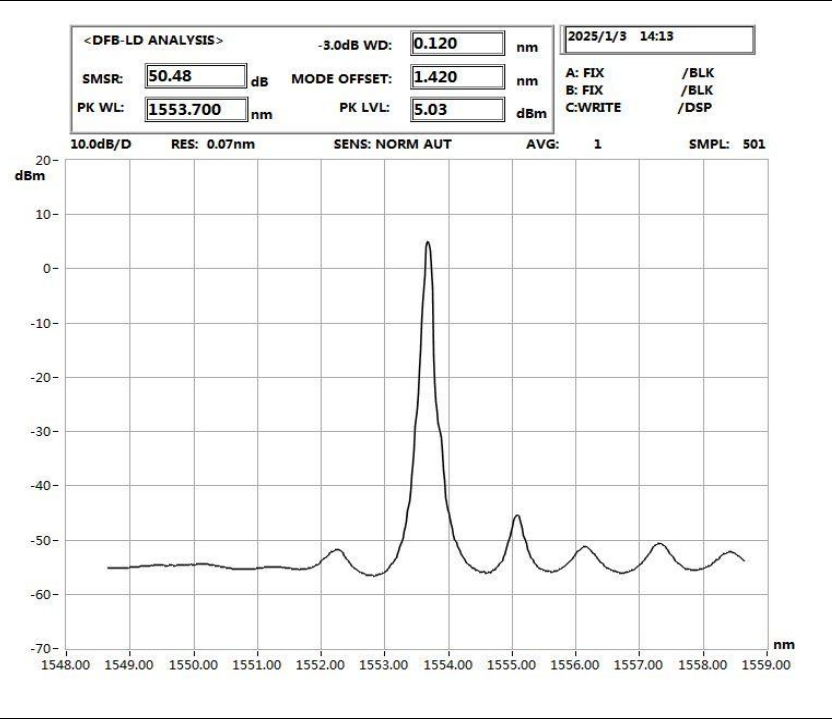

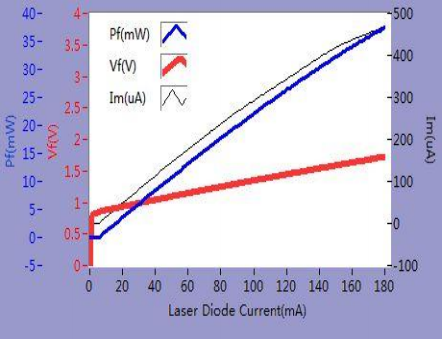

4. Typical Characteristical Curve of DWDM 1553.33nm CW DFB laser diode
5. Shipping
Via DHL/ UPS/ FedEx...
Lead time: around 3 weeks
